General Features:

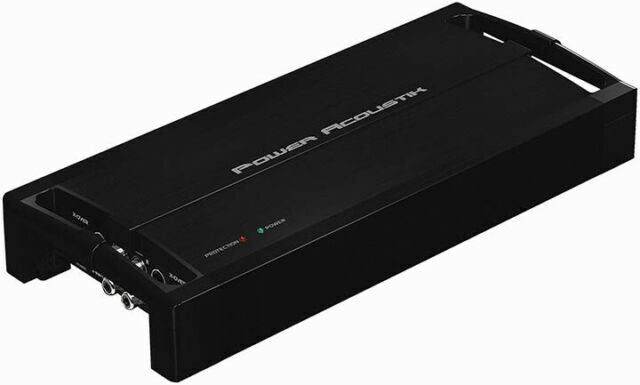

• 4-Channel RAZOR Series Full Range Class D Car Amplifier
• RMS Power Rating:
• 4 ohms: 160 watts x 4 chan.
• 2 ohms: 250 watts x 4 chan.
• Bridged, 4 ohms: 500 x 2 chan.
• Max power output: 2000 watts
• Pulse Width Modulated MOSFET power supply
• LED power (green) and protect (red) indicators
• Soft start turn-on
• Mono channel operation
• Speaker-level (high-level) inputs
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• 4.75" Wide Chassis Heavy duty aluminum alloy heat-sink for extreme heat dissipation
• Bridgeable Amplifier
• Nickel-plated RCA level inputs
• Nickel-plated screw terminals
• Input Sensitivity: 0.25V to 6V
• 80Hz HP Crossover @ 12dB
• 80Hz LP Crossover @ 12dB
• 4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
• Fuse: 30A x 2
• Dimensions: 4-3/4"W x 11-1/10"L x 1-1/3"H
